Electromechanical Game

Electronics and Controls ( fall 2022)

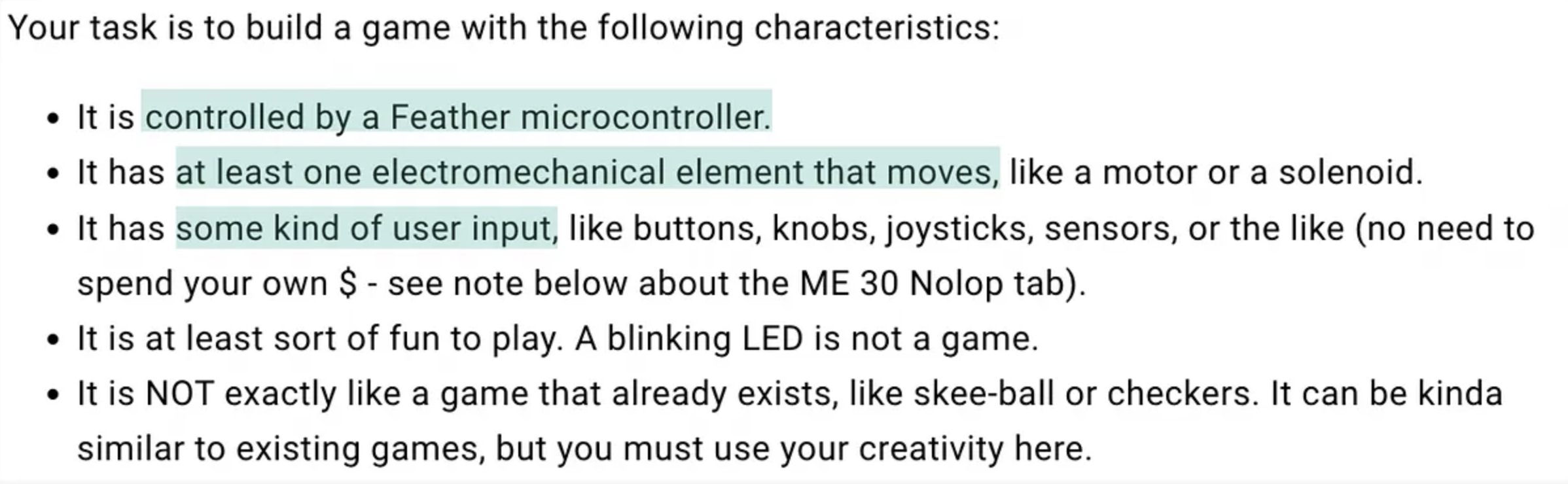

The Project:

My Inspiration:

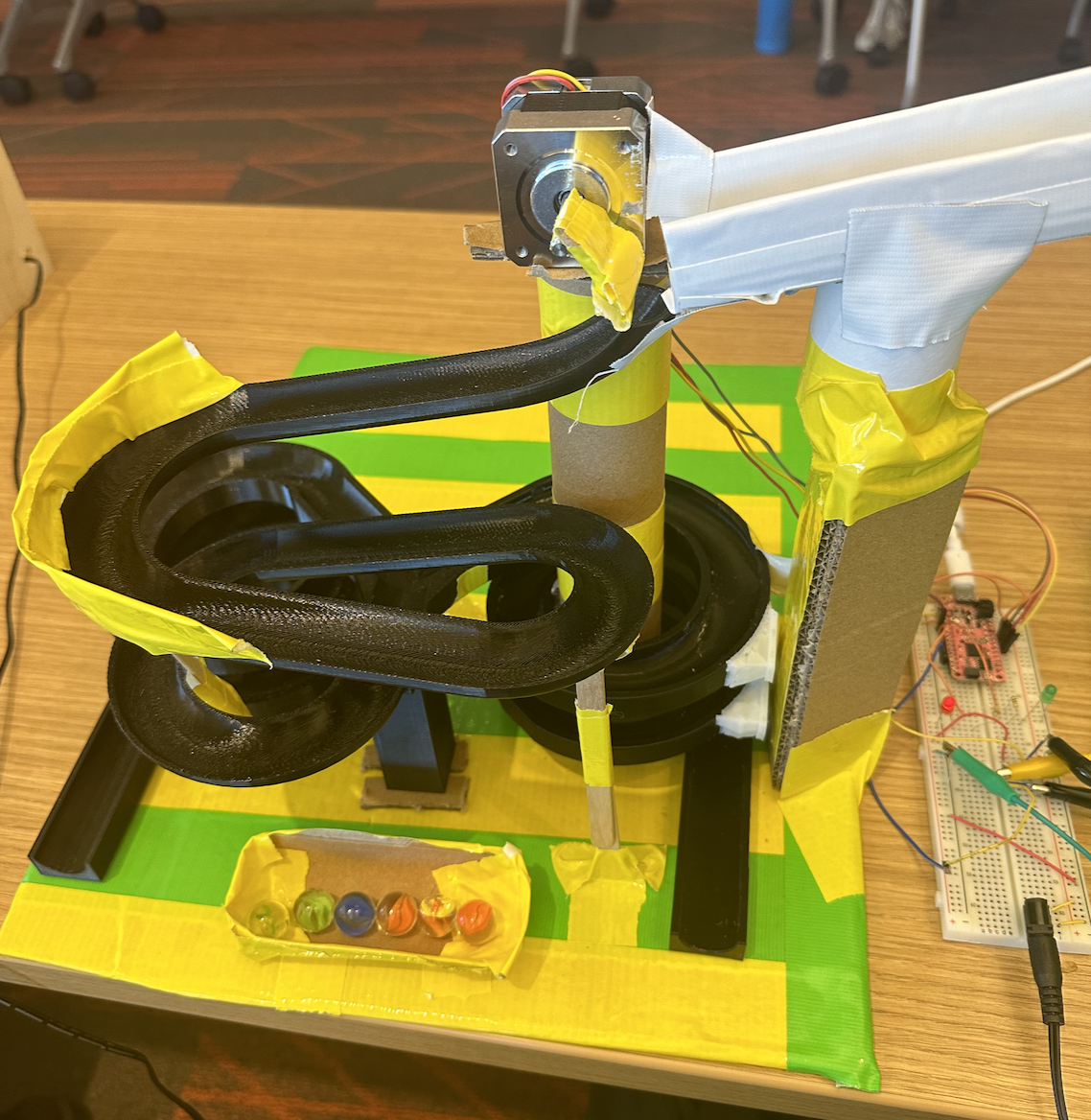

I watch a lot of gameshows and one of my favorites is Survivor. They have this game pictured to the left called "Simmotion." It is one of my favorites to watch so I wanted to make an electromechanical game inspired by this.

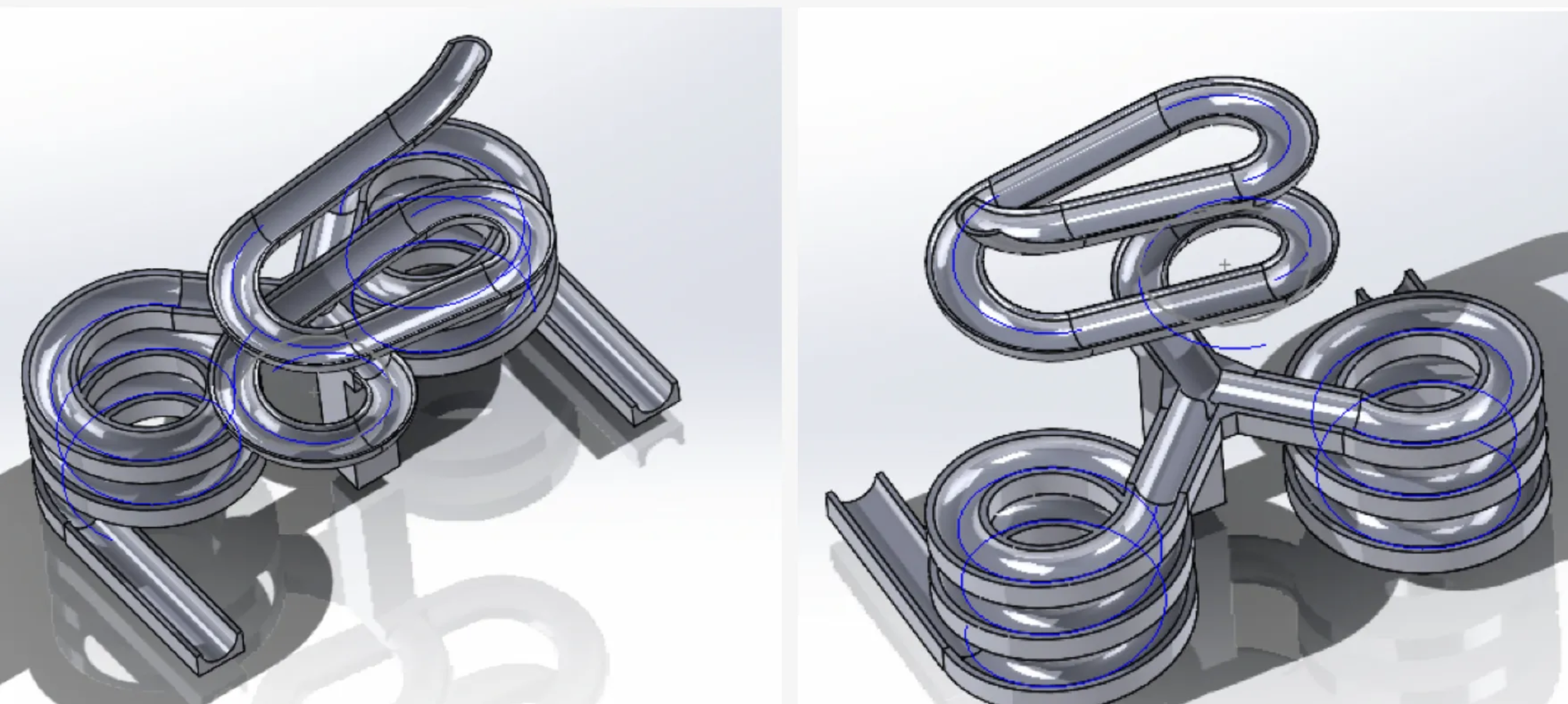

CAD in the Project:

LEDs

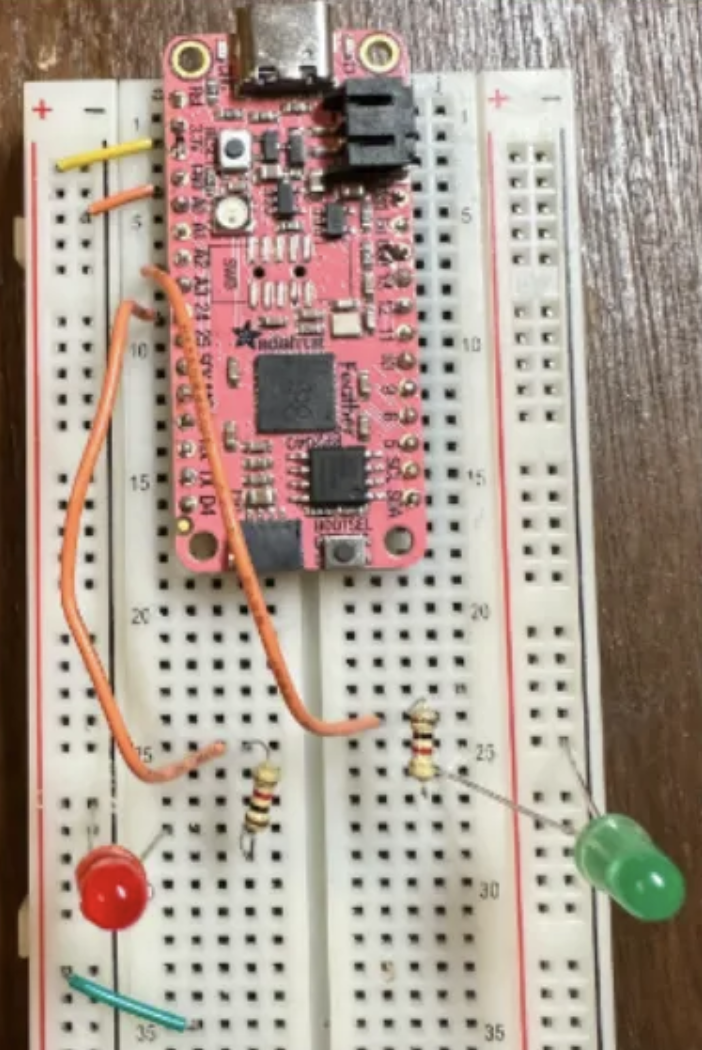

  • one for signaling the ball drop

  • one for signaling game over

Push Buttons

  • one to end the game

  • one to start the game

Motor

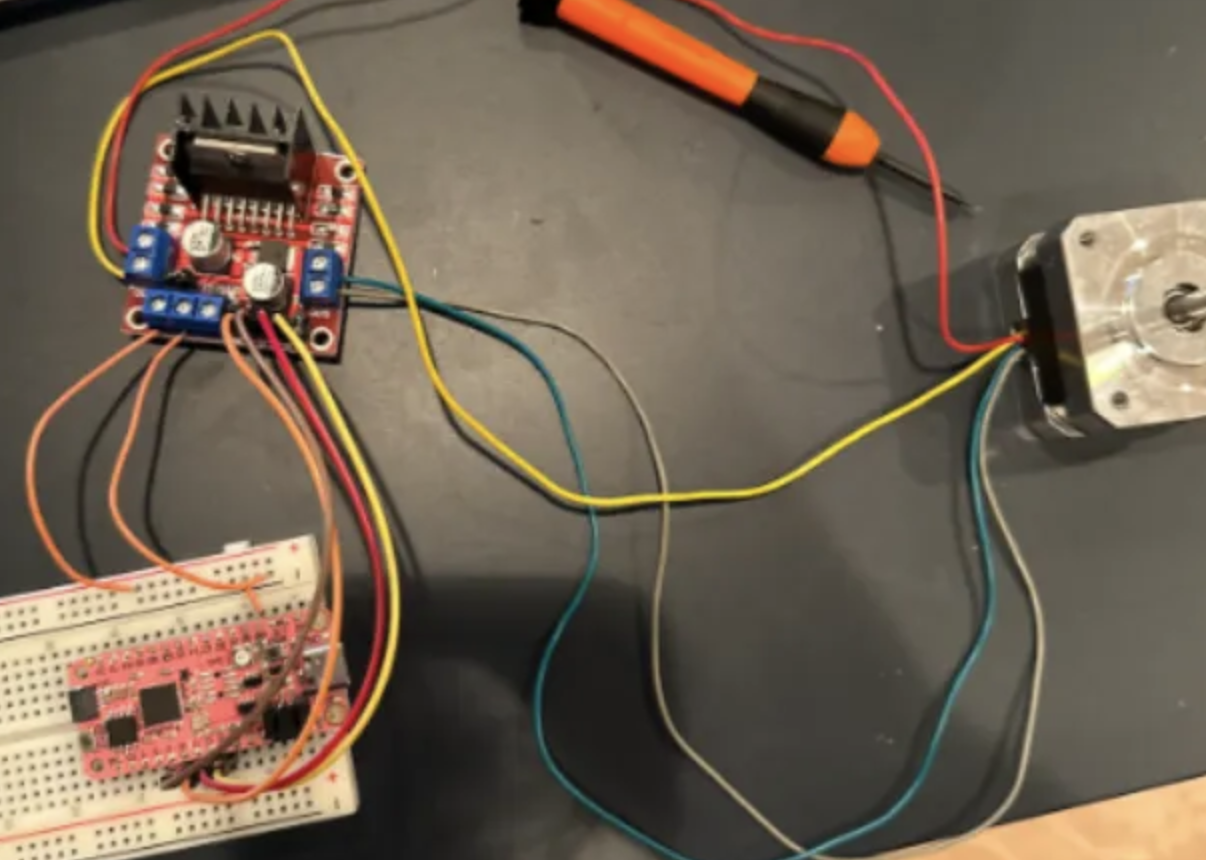

  • a stepper motor to control letting the marble out

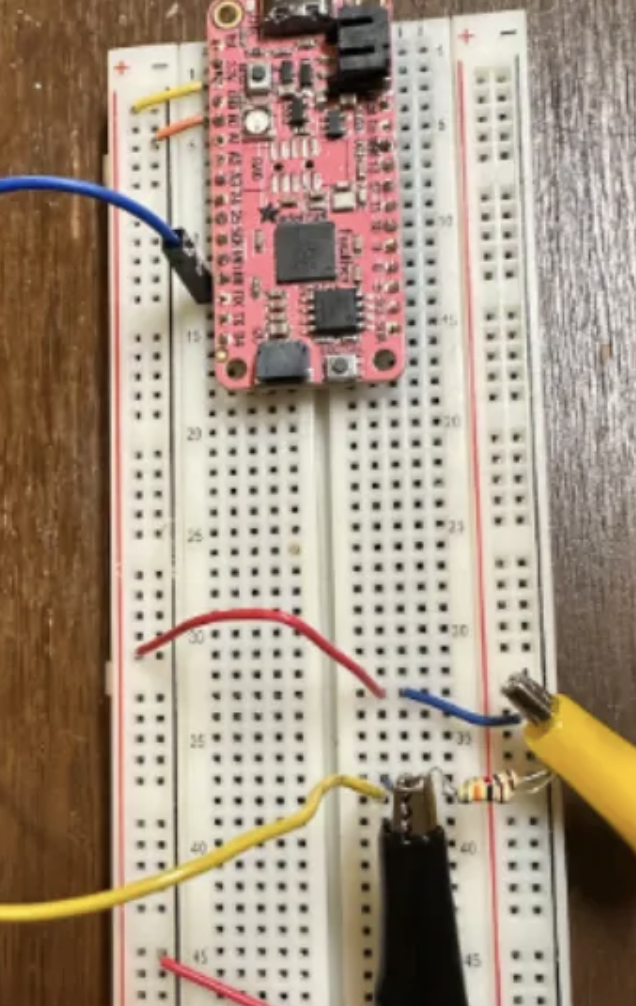

Electronics in the Project:

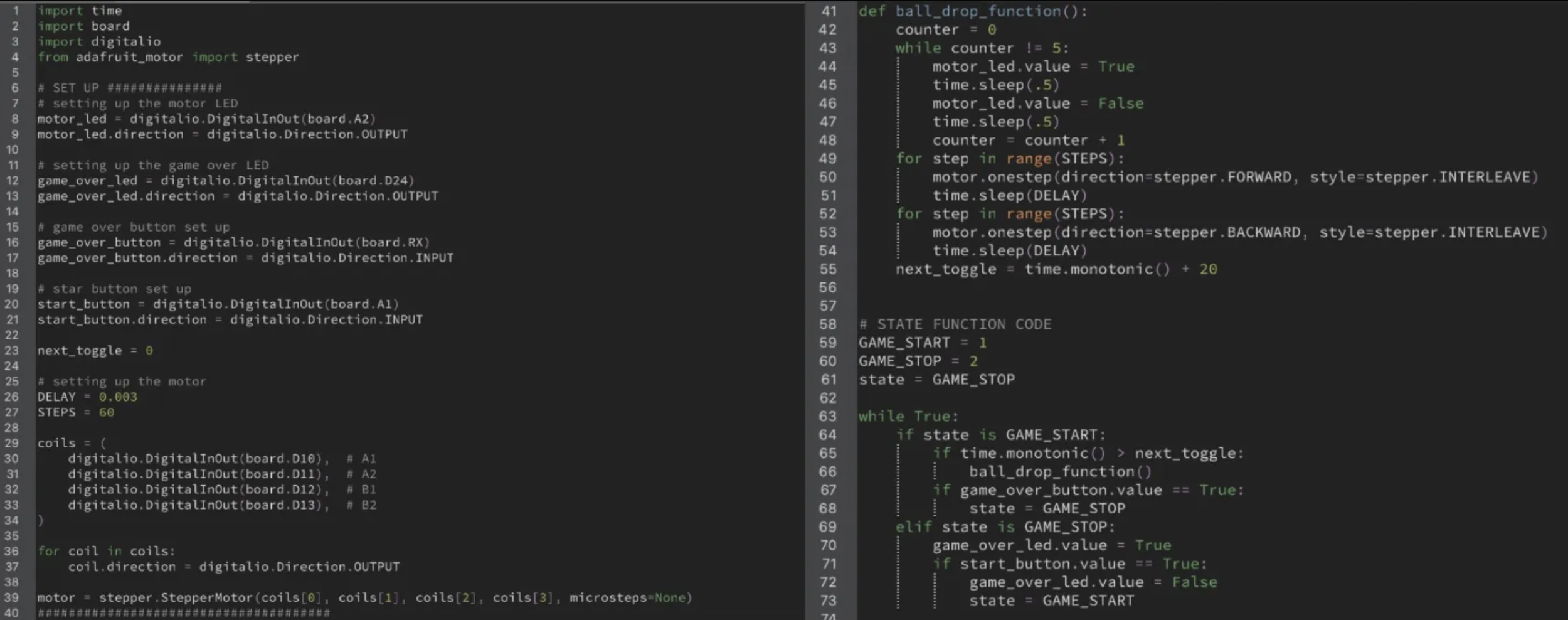

Code in the Project:
